KPI Delta

Properties​

Title​

Title to display above the gauge. Set to an empty string to have no title.

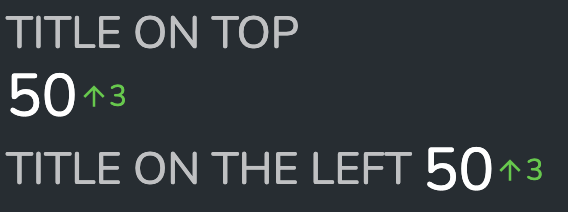

Title Position​

Position of the title relative to the control values:

  • top (default)
  • left

Kind​

The type of value of the control:

  • Numeric (default)
  • Datetime

Timezone​

Timezone of the date. Only applicable when Kind is "datetime". Defaults to UTC.

KPI Value​

Numeric value of the control

KPI Delta​

Numeric value of the delta

KPI Prefix​

Prefix to appear in front of the KPI value.

KPI Suffix​

Suffix to appear in at the end of the KPI value.

Delta Suffix​

Prefix to appear in front of the delta value.

Delta Suffix​

Suffix to appear in at the end of the delta value.

Up Is Good?​

Boolean value setting if an increase in value is good and thus the delta should be in green color when positive and red in negative or vice versa.

Show KPI​

Boolean value indicating if the KPI value should be shown or not.

Show Delta​

Boolean value indicating if the delta value should be shown or not.

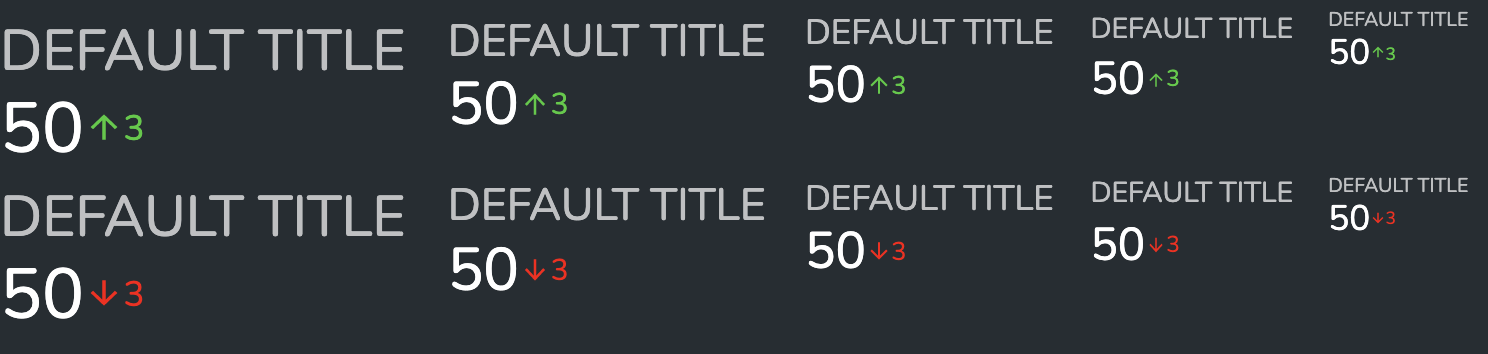

Text Size​

Font size options for the value, prefix, suffix.

  • Extra Large
  • Large (default)
  • Medium
  • Small
  • Extra Small

Delta Size Proportion​

Numeric value showing what proportion the delta value be relative to the KPI value. For example, if the value is 0.5 then the delta will be half the size of the KPI value.

Value Format​

Numeral.js format applied to the KPI value.

Delta Format​

Numeral.js format applied to the KPI value.

Alignment​

Text alignment of the control

  • Left
  • Middle
  • Right

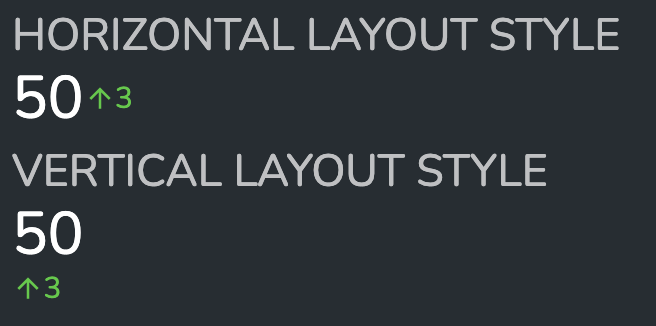

Layout Style​

Layout position options for the control:

  • Horizontal (default)
  • Vertical

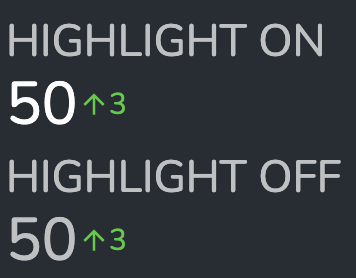

Highlight Value​

Boolean value showing if the text should be highlighted or not.
